Description

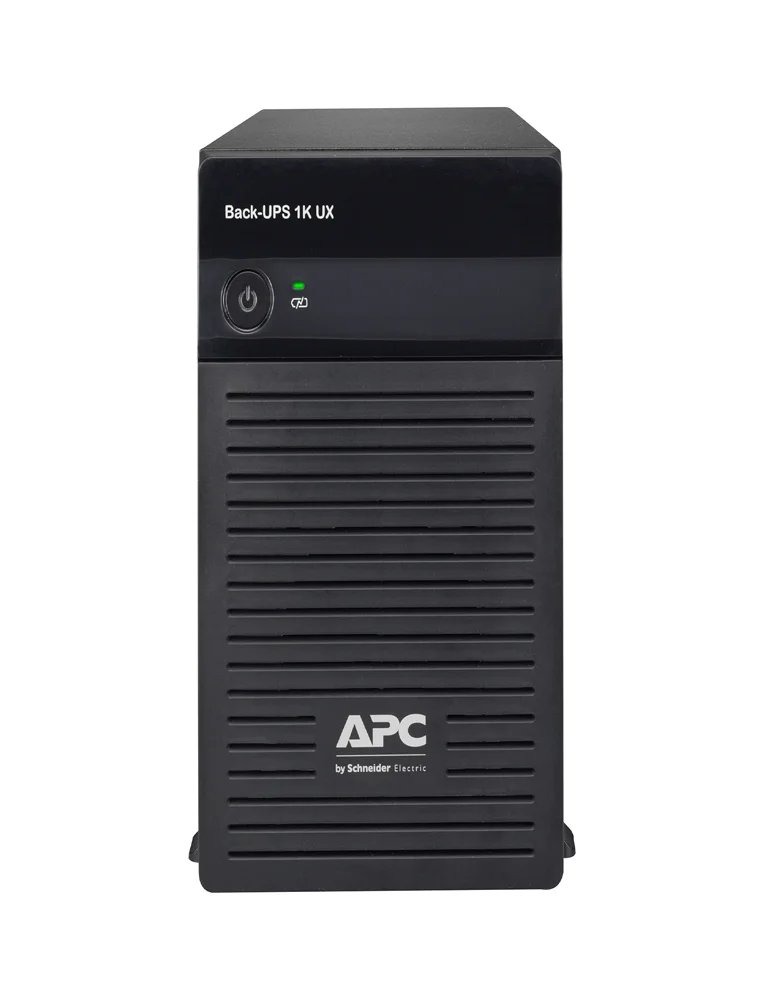

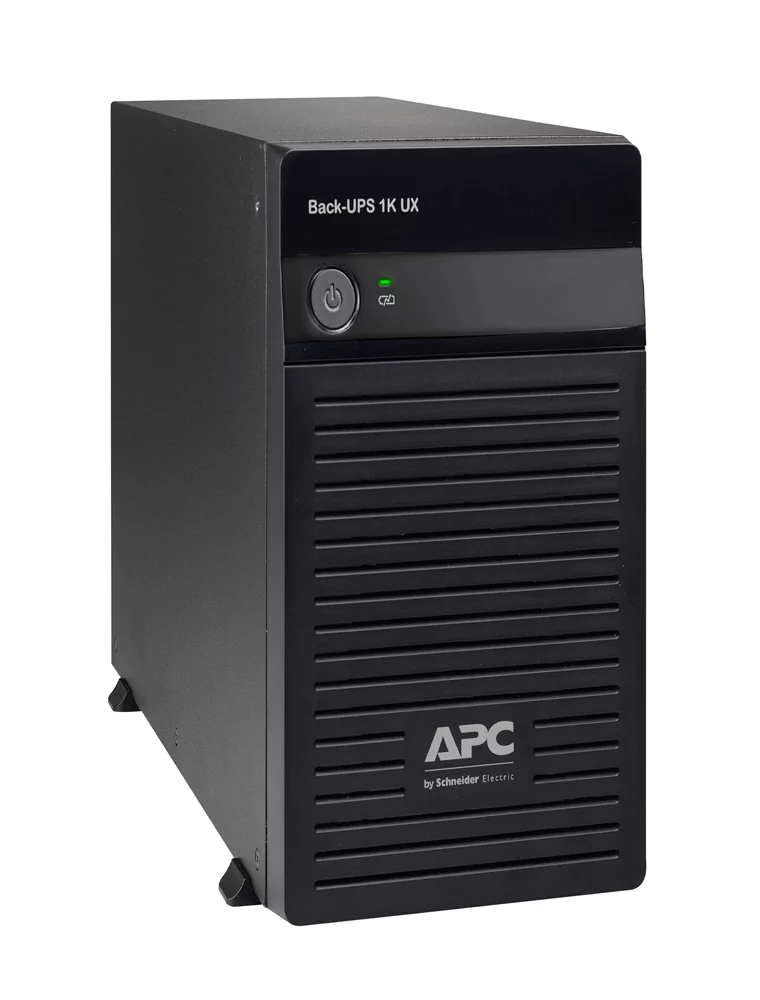

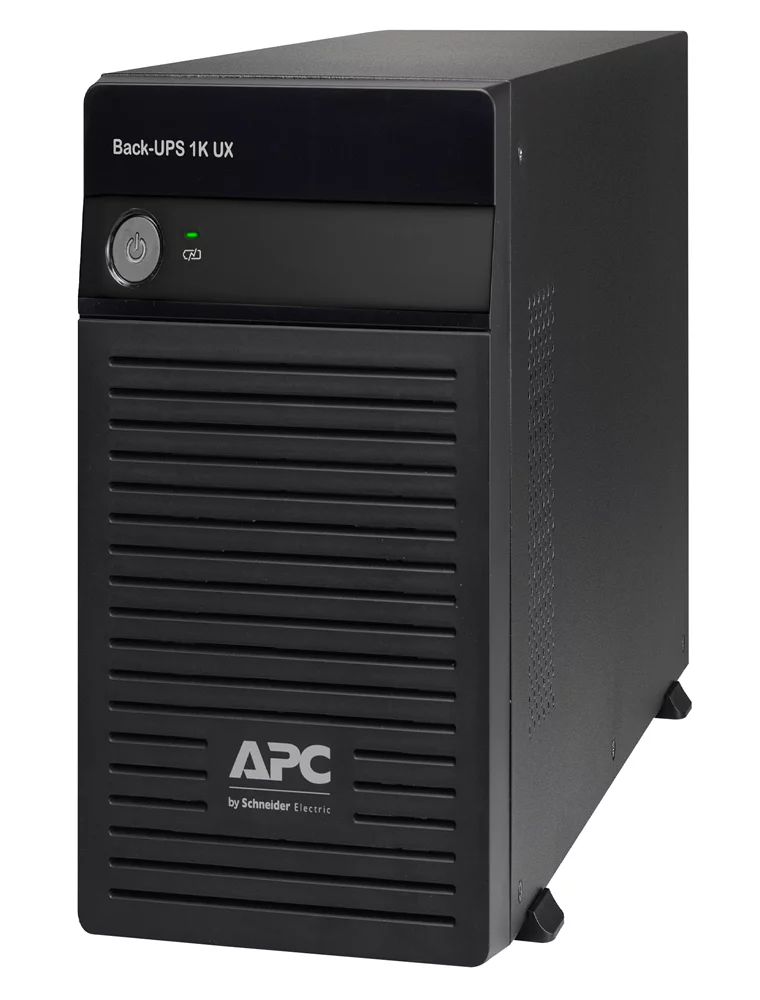

BX1000UXI Features
Main | |
acoustic level | 50 dBA |
battery curve | B |
battery type | External battery system |
curve equation | Efficiency |
curve load maximum | 100 % |
curve X-axis maximum | 100 % |
curve X-axis minimum | 0 % |
curve X-axis title | Load |
curve X-axis units | Percentage |
curve Y-axis maximum | 100 % |
curve Y-axis minimum | 50 % |
curve Y-axis title | Efficiency |
curve Y-axis units | Percentage |
extended runtime | 0 |
Maximum configurable power in VA | 1000 VA |
Maximum configurable power in W | 600 W |
liquid value | 0 |
mounting mode | Not rack-mountable |
mounting preference | No preference |
number of battery filled slots | 0 |
number of battery free slots | 0 |
cable length | 0.46 m |
depth | 39.2 cm |
height | 22 cm |
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
net weight | 9.3 kg |
rated power in VA | 1000 VA |
rated power in W | 600 W |
Number of tare power | 26 W |
width | 14.5 cm |
operating altitude | 0…3000 ft |
ambient air temperature for operation | 0…40 °C |
ambient air temperature for storage | 0…45 °C |
storage altitude | 0.00…3048.00 m |
Transfer time | 8 ms typical : 12 ms maximum |
UPS size | WS |
UPS type | Square |
Wave type | Stepped approximation to a sinewave |
graph display | 1 |
redundant | No |
show note OP temperature | No |
two post mountable | 0 |
No | |
input voltage | 230 V |
efficiency | 92 % (full load) |
90 % (half load) | |
nb of power socket outlets | 4 India 2/3-pin 6A |
network frequency | 40…70 Hz |
output voltage | 230 V |
provided equipment | User manual |
Warranty card | |
relative humidity | 0…95 % |
Battery power in VAH | 0 VAh runtime |
Input | |
plug standard | India 3-pin 6A |
Output | |
output frequency | 50 Hz +/- 1 Hz unsynchronised |
Communications & Management | |
control panel | LED Status display with on line : on battery |
Packing Units | |
Package 1 Weight | 10.2 kg |
Package 1 Height | 33.5 cm |
Package 1 width | 23.5 cm |
Package 1 Length | 47.7 cm |
Package 2 Weight | 0.70 kg |
Package 3 Weight | 19 kg |
Package 3 Height | 12.6 cm |
Package 3 width | 100 cm |
Package 3 Length | 120 cm |
Offer Sustainability | |
EU RoHS Directive | Compliant |
EU RoHS Declaration | |
Contractual warranty | |
Warranty | 2 years repair or replace |
