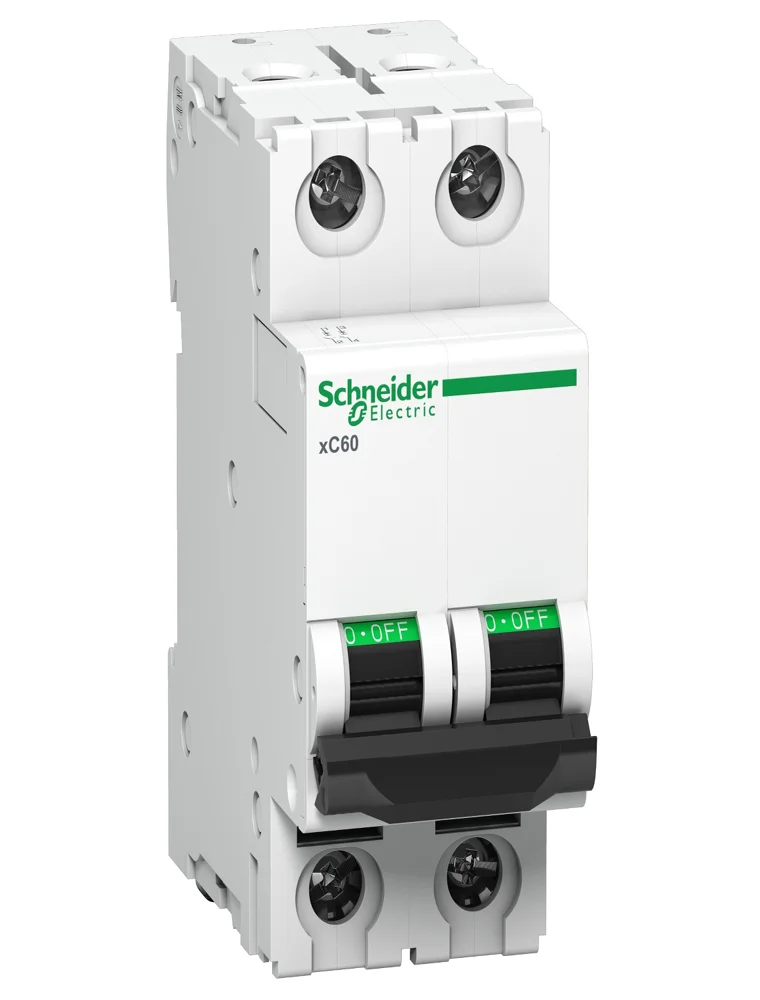

Miniature circuit breaker – xC60 – 2 poles – 10 A – B curve A9N2P10B

Miniature circuit breaker – xC60 – 2 poles – 10 A – B curve A9N2P10B

SKU: A9N2P10B Category: Tag:

Compare

Description

Main

device application

Distribution

range of product

Acti 9

range

Acti 9

product name

XC60

product or component type

Miniature circuit-breaker

device short name

XC60

poles description

2P

number of protected poles

2

[In] rated current

10 A

network type

DC
AC

trip unit technology

Thermal-magnetic

curve code

B

utilisation category

Category A conforming to EN/IEC 60947-2

suitability for isolation

Yes conforming to EN/IEC 60947-2

Complementary

network frequency

50/60 Hz

[Ue] rated operational voltage

240 V AC 50/60 Hz
380…415 V AC 50/60 Hz
100…125 V DC

magnetic tripping limit

4 x In +/- 20 %

breaking capacity

10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
15 kA Icu at 380…415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 100…125 V DC conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

6 kA conforming to EN/IEC 60947-2 – 100…125 V DC
7.5 kA conforming to EN/IEC 60947-2 – 380…415 V AC 50/60 Hz

limitation class

3 conforming to EN/IEC 60898-1
3 conforming to EN/IEC 60947-2

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

contact position indicator

Yes

control type

Toggle

local signalling

ON/OFF indication

mounting mode

Clip-on

mounting support

35 mm DIN rail

comb busbar and distribution block compatibility

Top: YES

9 mm pitches

4

height

85 mm

width

36 mm

depth

77.5 mm

net weight

0.215 kg

colour

White

mechanical durability

20000 cycles

electrical durability

20000 cycles

connections – terminals

Tunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (top)

wire stripping length

13 mm for top or bottom connection

tightening torque

2 N.m

earth-leakage protection

Separate block

product compatibility

C60 auxiliary
C60 accessories

Environment

standards

EN/IEC 60947-2
EN/IEC 60898-1

IP degree of protection

IP20 conforming to IEC 60529

pollution degree

3

tropicalisation

2 conforming to IEC 60068-1

relative humidity

95 % at 55 °C

ambient air temperature for operation

-30…70 °C

ambient air temperature for storage

-40…85 °C

Offer Sustainability

Sustainable offer status

Green Premium product

REACh Regulation

REACh Declaration

EU RoHS Directive

Compliant
EU RoHS Declaration

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information

Circularity Profile

No need of specific recycling operations
