TOSIBOX Lock 150 Industrial router with firewall

TOSIBOX Lock 150 Industrial router with firewall

SKU: Lock 150 Category: Tag:




TOSIBOX® Lock 150 is an industrial router with firewall and easy Plug & Go™ connectivity. It serves as an endpoint for secure remote connections. IoT devices connected to the Lock can be securely accessed over the Internet and most LAN and WAN networks through an encrypted VPN connection.

TOSIBOX® Lock 150 is compatible with all existing TOSIBOX® products. Modularity of the products enables easy and fast extension of networks.

Main Features

  • Patented TOSIBOX® Plug & Go™connection method takes you out of the box and into use in less than 5 minutes, without the need for software installations, network configurations or special IT skills.

  • NAT and firewall friendly

  • VPN throughput up to 10 Mbit/s, end-to-end encryption between TOSIBOX® devices

  • Performing at the highest security levels in the industry – See security questions answered in our Security Center

  • Up to 10 concurrent VPN connections

  • Audited and patented security

  • Reliability with TosiOnline™automatic reconnection of dropped connections

  • Compact physical size for space conscious environments

Lock 150 Technical Date :

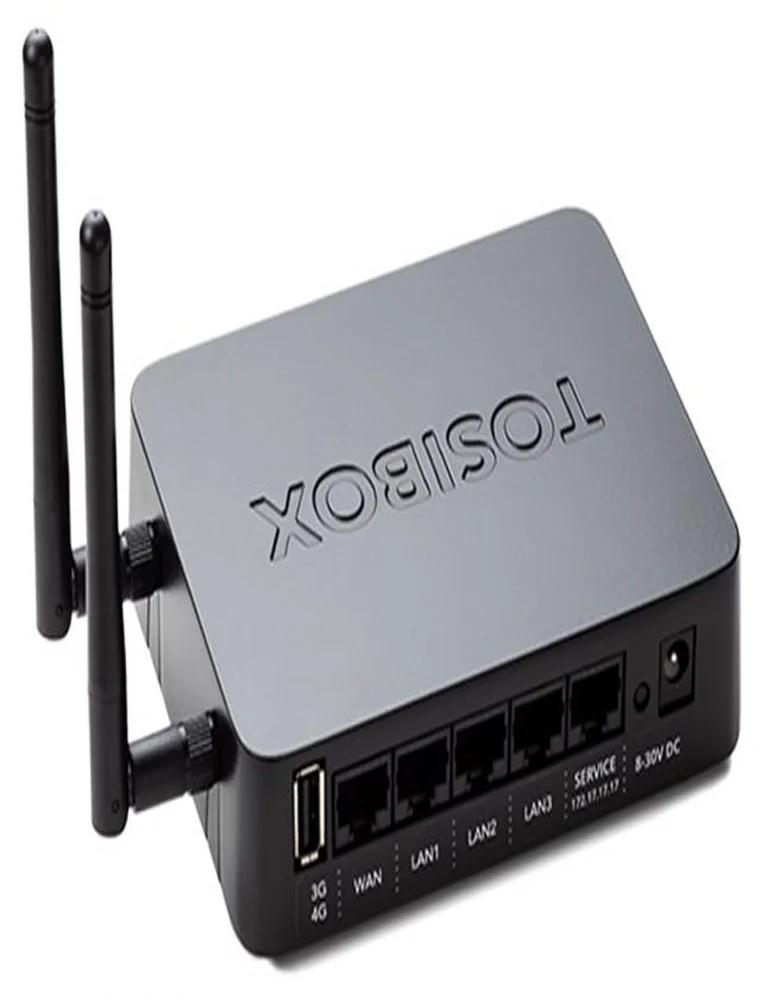

Ports :

1 x USB 2.0, type A

1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)

3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)

1 x RJ-45 Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)

Connections :

10-30V DC +-10% (reverse polarity protected)

2 x Wireless network antenna connector, RP-SMA

DIN rail attachment (bottom), angle bracket available as an accessory (TBMBD1)

WAN connection features :

Independent of operating systems

Works in all Internet connections (operator independent)

Supports HTTP proxy servers with and without authentication

Firewall friendly

Works with dynamic, static and private IP addresses

Built-in firewall, NAT

Up to 10 concurrent VPN connections

VPN throughput up to 10 Mbit/s

Mobile connection features :

Supported USB modems: TOSIBOX® 4G modem, TB4GM (Huawei E3372), TB3GM2M (Huawei MS2131)

TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems


IEEE 802.11 b/g/n, max. 150 Mbps

WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed encryption

Frequency 2.412 – 2.462 GHz, 11 channels

Output power 20 dBm max

Physical properties :

132 mm x 99 mm x 35.5 mm / 5.2″ x 3.9″ x 1.4″ (L x W x H)

Weight 593 g / 1.31 lbs (net weight article)

Cast aluminum casing

Operating temperature: -20 °C … +55 °C / -4 °F … 131 °F

Operating humidity: 20 – 80% RH, non-condensing

Storage temperature -40 °C … +70 °C / -40 °F … 158 °F

Protection class IP20

Included accessories :

2 x WLAN antennas, 2 dBi

AC Adapter (EU, UK, AU or US power socket)

DC input plug

DIN rail mounting bracket

Lock 150 power source :

Model: ATS024T-W240V

Input: 100-240 V AC

Frequency: 50-60 Hz

Output: 24 V / 1 A / max 24 W

Operating temperature: -20 °C … +70 °C / -4°F… 158 °F

Operating humidity: 20% – 80% RH

Storage temperature: -20 °C … +80 °C / -4°F… 176 °F

Storage humidity: 10% – 90% RH

Certifications :


Product codes :

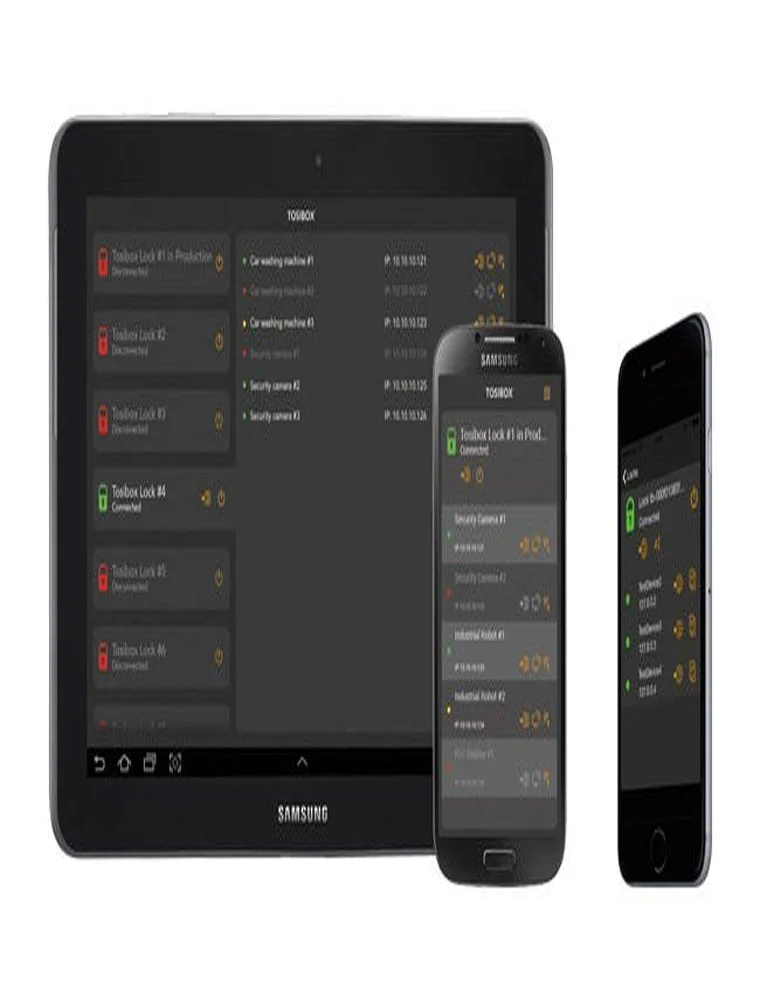

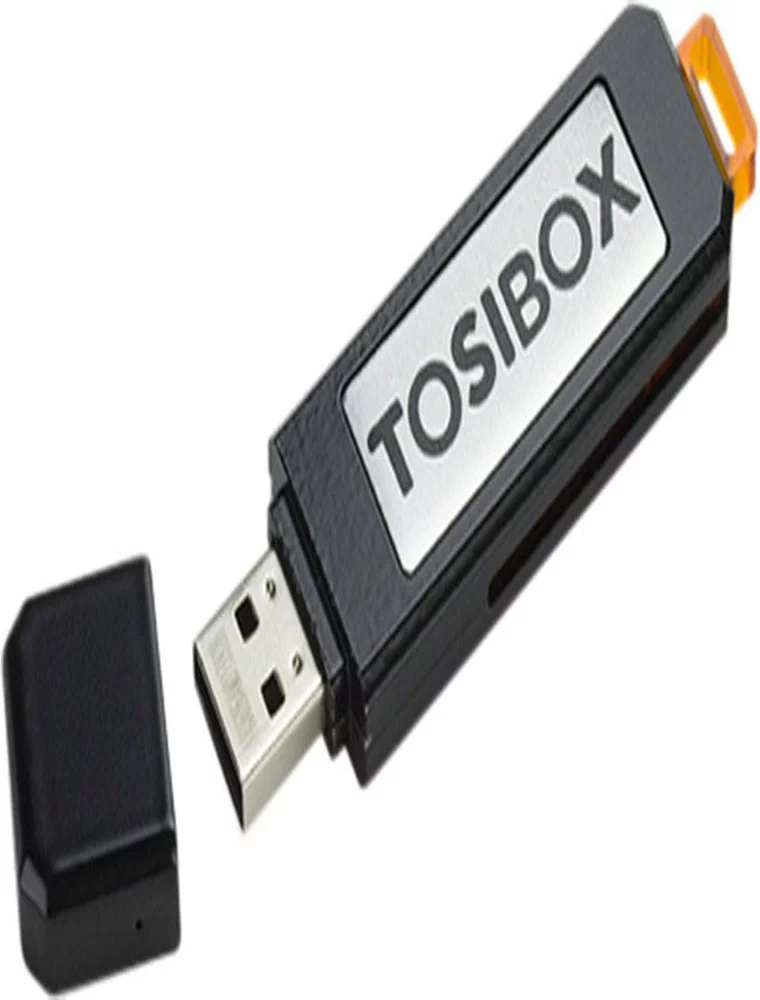

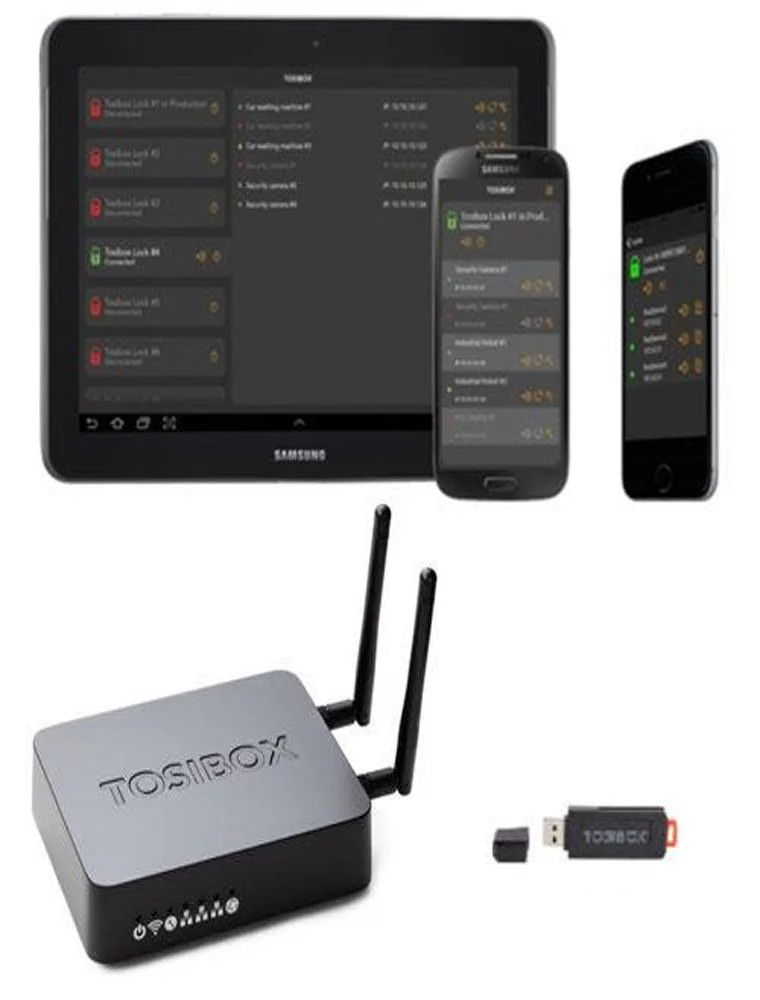

Starter Kit is a pack which includes TOSIBOX Master Key, TOSIBOX Softkey, TOSIBOX Mobile Client, TOSIBOX Lock 150 with Integrated Modem and Setup Guide Booklet.
