Overview

Model Name

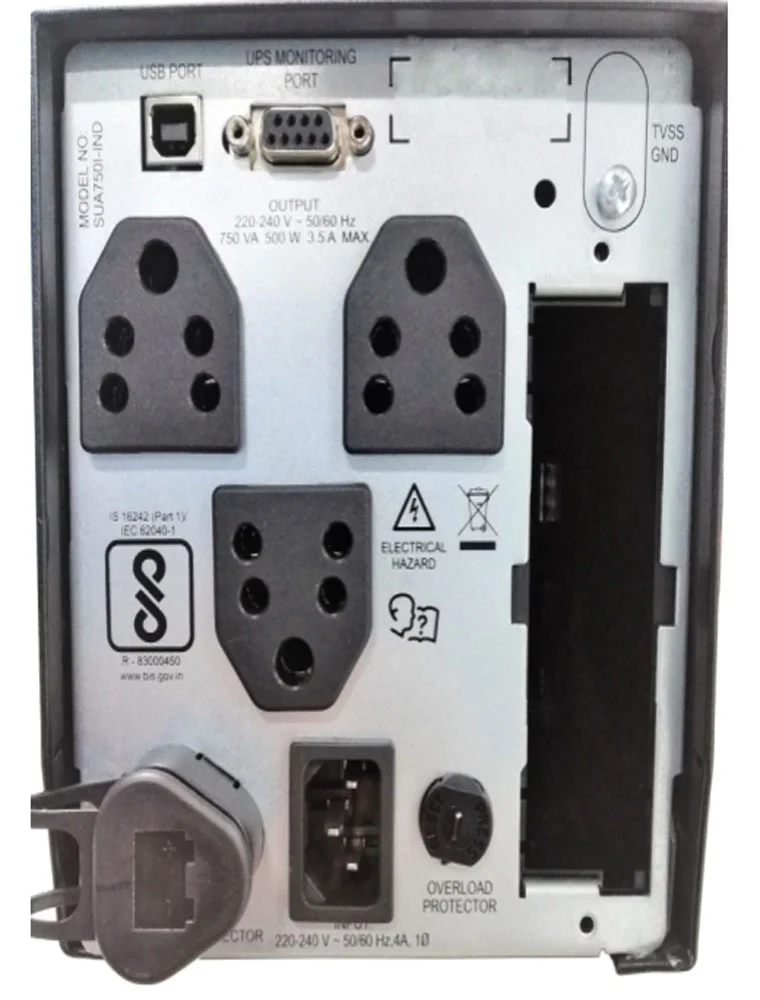

APC Smart-UPS 750VA USB & Serial 230V, India Specific

Includes

CD with software , Smart UPS signalling RS-232 cable , USB cable , User Manual

Standard Lead Time

Usually in Stock

Product Distribution

India

Output

Output Power Capacity

500 Watts / 750 VA

Max Configurable Power (Watts)

500 Watts / 750 VA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

47 – 53 Hz for 50 Hz nominal

Line Interactive

Waveform Type

Sine wave

Output Connections

(4) India 3-pin 6A (Battery Backup)

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

160 – 285 V

Input voltage adjustable range for mains operation

151 – 302V

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

4 hour(s)

Communications & Management

Interface Port(s)

DB-9 RS-232 , SmartSlot , USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Physical

Maximum Height

157.0 mm

Maximum Width

137.0 mm

Maximum Depth

361.0 mm

Net Weight

13.15 kg

Shipping Weight

14.55 kg

Shipping Height

290.0 mm

Shipping Width

270.0 mm

Shipping Depth

500.0 mm

Units per Pallet

24

Environmental

Operating Environment

0 – 40 °C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0-3000 meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

41.000 dB

Conformance

Approvals

BIS

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains SVHCs
