Description

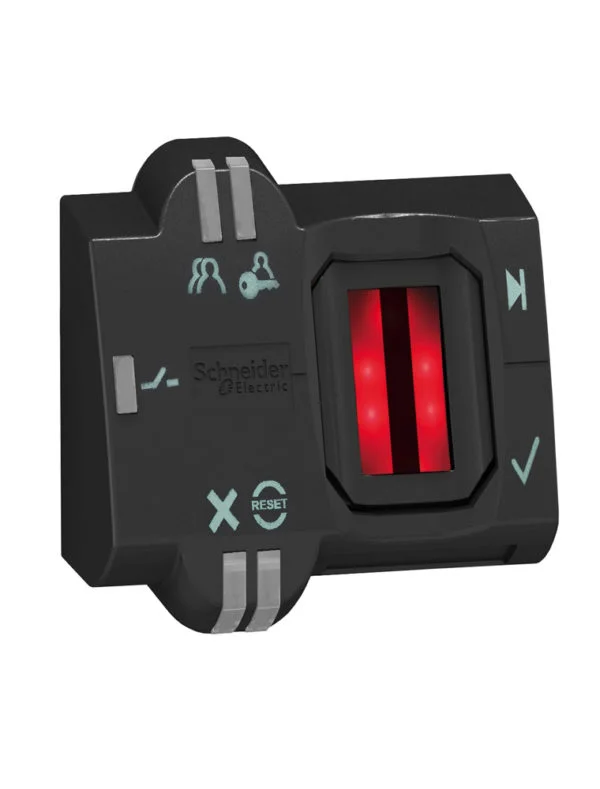

XB5S2B2L2 Characteristics
Main | |
product or component type | Biometric switch |
product specific application | Industrial machines |
Materials handling | |
device short name | XB5S |
bezel material | Dark grey plastic |
mounting diameter | 22 mm |
output type | PNP |
sale per indivisible quantity | 1 |
IP degree of protection | IP20 (rear face) conforming to EN/IEC 60529 |
IP65 (front face) conforming to EN/IEC 60529 | |
type of operator | Momentary |
operator profile | fingerprint reader |
connections – terminals | 1 pre-wired cable, 3 x 0.34 mm² |
memory usage | 200 users with up to 2 fingerprints per user |
Complementary | |
enclosure material | Polyamide PA66 |
cable insulation material | PvR |
operating position | Flat surface installation |
Horizontal position | |
Vertical surface installation | |
function of module | Monostable |
net weight | 0.17 kg |
marking | CE |
local signalling | 1 LED (green)output state indicator: |
1 LED (orange)administrator’s registration mode: | |
1 LED (orange)operator’s registration mode: | |
1 LED (red)error: | |
1 LED (red)reset: | |
short-circuit protection | 250 mA external fuse type gG |
[Us] rated supply voltage | 24 V DC |
electrical connection | free wire ends with 3 wires of 2 m |
supply voltage limits | 20…30 V DC |
protection type | Overload protection |
Short-circuit | |
Reverse polarity | |
maximum switching current | 200 mA |
[Ures] residual voltage | 1 V closed state |
current consumption | <= 70 mA no-load |
maximum delay first up | 3 s + 0.5 ms per user registered |
maximum delay recovery | 1.5 s |
maximum delay response | 1.5 s |
Environment | |
range of product | Harmony XB5S |
ambient air temperature for storage | -25…70 °C |
ambient air temperature for operation | -5…50 °C |
NEMA degree of protection | NEMA 12 |
standards | IEC 61000-6-4 |
IEC 61000-6-2 | |
product certifications | UL |
CSA | |
vibration resistance | +/- 3 mm (f= 5…9 Hz) conforming to IEC 60068-2-6 |
1 gn (f= 9…500 Hz) conforming to IEC 60068-2-6 | |
shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
Packing Units | |
Package 1 Weight | 0.197 kg |
Package 1 Height | 0.930 dm |
Package 1 width | 0.650 dm |
Package 1 Length | 1.840 dm |
Offer Sustainability | |
EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
EU RoHS Declaration | |
Mercury free | Yes |
RoHS exemption information | Yes |
China RoHS Regulation | China RoHS declaration |
Environmental Disclosure | Product Environmental Profile |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Contractual warranty | |
Warranty | 18 months |
Dimensions Drawings
Dimensions of Biometric Switches
e:1 to 6 mm / 0.04 to 0.24 in.Connections and Schema
Cable with PNP Output
BU: Blue
BN: Brown
BK: Black
