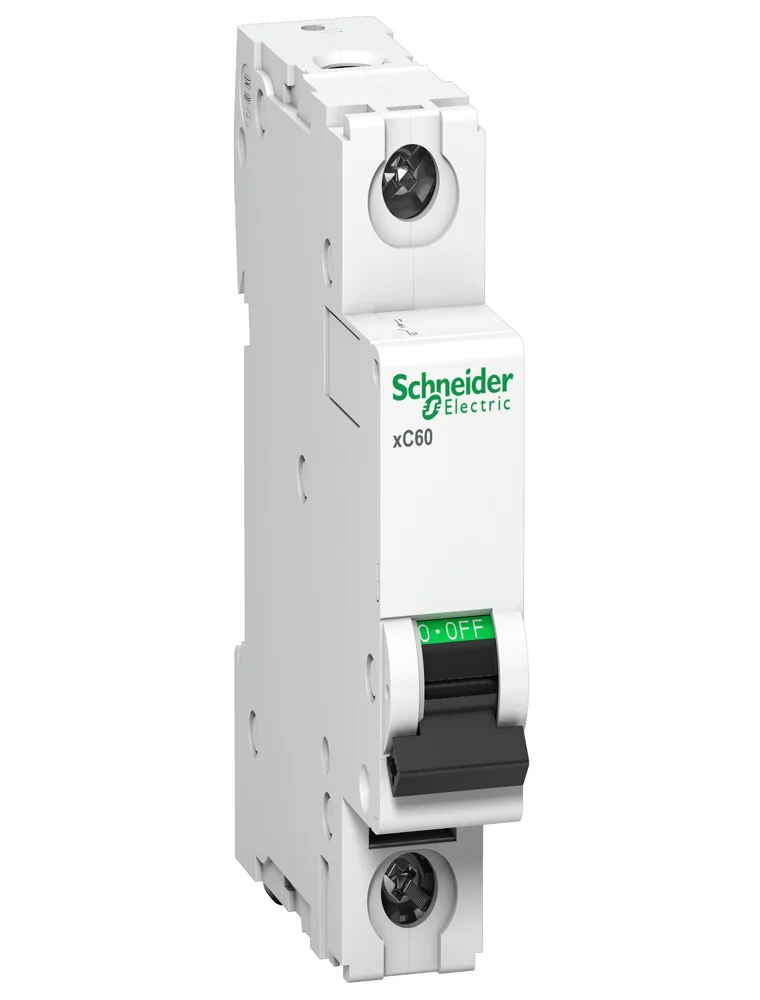

Miniature circuit breaker – xC60 – 1 pole – 1 A – C curve A9N1P01C

Miniature circuit breaker – xC60 – 1 pole – 1 A – C curve A9N1P01C

SKU: A9N1P01C Category: Tag:

488.00 201.00

Compare

Description

A9N1P01C Specification

Main

device application

Distribution

range of product

Acti 9

range

Acti 9

product name

XC60

product or component type

Miniature circuit-breaker

device short name

XC60

poles description

1P

number of protected poles

1

[In] rated current

1 A

network type

DC

AC

trip unit technology

Thermal-magnetic

curve code

C

utilisation category

Category A conforming to EN/IEC 60947-2

suitability for isolation

Yes conforming to EN/IEC 60947-2

Complementary

network frequency

50/60 Hz

[Ue] rated operational voltage

220…240 V AC 50/60 Hz

12…48 V DC

60 V DC

magnetic tripping limit

8 x In +/- 20 %

breaking capacity

10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1

15 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2

15 kA Icu at 12…48 V DC conforming to EN/IEC 60947-2

6 kA Icu at 60 V DC conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

15 kA conforming to EN/IEC 60947-2 – 12…48 V DC

6 kA conforming to EN/IEC 60947-2 – 60 V DC

7.5 kA conforming to EN/IEC 60947-2 – 220…240 V AC 50/60 Hz

limitation class

3 conforming to EN/IEC 60898-1

3 conforming to EN/IEC 60947-2

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

contact position indicator

Yes

control type

Toggle

local signalling

ON/OFF indication

mounting mode

Clip-on

mounting support

35 mm DIN rail

comb busbar and distribution block compatibility

Top: YES

9 mm pitches

2

height

85 mm

width

18 mm

depth

77.5 mm

net weight

0.115 kg

colour

White

mechanical durability

20000 cycles

electrical durability

20000 cycles

connections – terminals

Tunnel type terminals (bottom) 16 mm² flexible

Tunnel type terminals (bottom) 25 mm² rigid

Biconnect (top)

wire stripping length

13 mm for top or bottom connection

tightening torque

2 N.m

earth-leakage protection

Separate block

product compatibility

C60 accessories

C60 auxiliary

Environment

standards

EN/IEC 60947-2

EN/IEC 60898-1

IP degree of protection

IP20 conforming to IEC 60529

pollution degree

3

tropicalisation

2 conforming to IEC 60068-1

relative humidity

95 % at 55 °C

ambient air temperature for operation

-30…70 °C

ambient air temperature for storage

-40…85 °C

Offer Sustainability

Sustainable offer status

Green Premium product

REACh Regulation

REACh Declaration

EU RoHS Directive

Compliant

EU RoHS Declaration

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

China RoHS declaration

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

Product Environmental Profile
