ETHERNET |
ETH | 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
IEEE 802.3 series standards | 802.3i, 802.3u, 802.3x, 802.3az |
PERFORMANCE SPECIFICATIONS |
Bandwidth (Non-blocking) | 1 Gbps |
MAC address table size | 2K entries |
Jumbo frame support | 2048 bytes |
POWER |
Connector | 2-pin industrial DC power socket |
Input voltage range | 9 – 30 VDC |
PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC |
Power consumption | Idle: 0.3 W / Max: 0.9 W |
PHYSICAL INTERFACES |
Ethernet | 5 x RJ45 ports, 10/100 Mbps |
Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
Power | 1 x 2-pin industrial DC power socket |
PHYSICAL SPECIFICATION |
Casing material | Aluminium housing |
Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
Weight | 146.5 g |
Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS |
Regulatory | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
SAFETY |
Standards | EN IEC 62368-1:2020+A11:2020 |

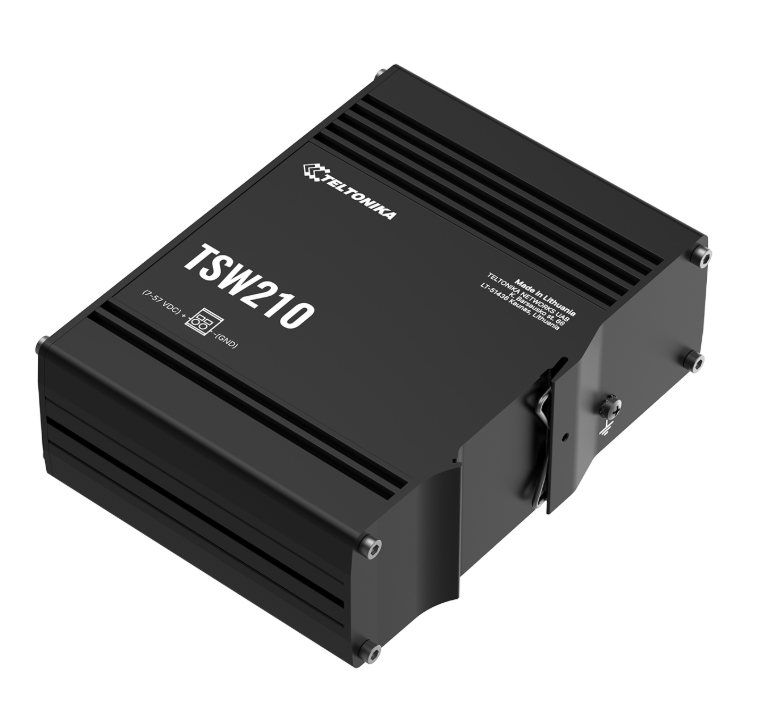

ETHERNET |
ETH | 8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
Fibre | 2 x SFP ports |
IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
PERFORMANCE SPECIFICATIONS |
Bandwidth (Non-blocking) | 20 Gbps |
Packer buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
POWER |
Connector | 2-pin industrial DC power socket |
Input voltage range | 7 – 57 VDC |
Power consumption | Idle: ~1.03 W / Max: 3.71 W |

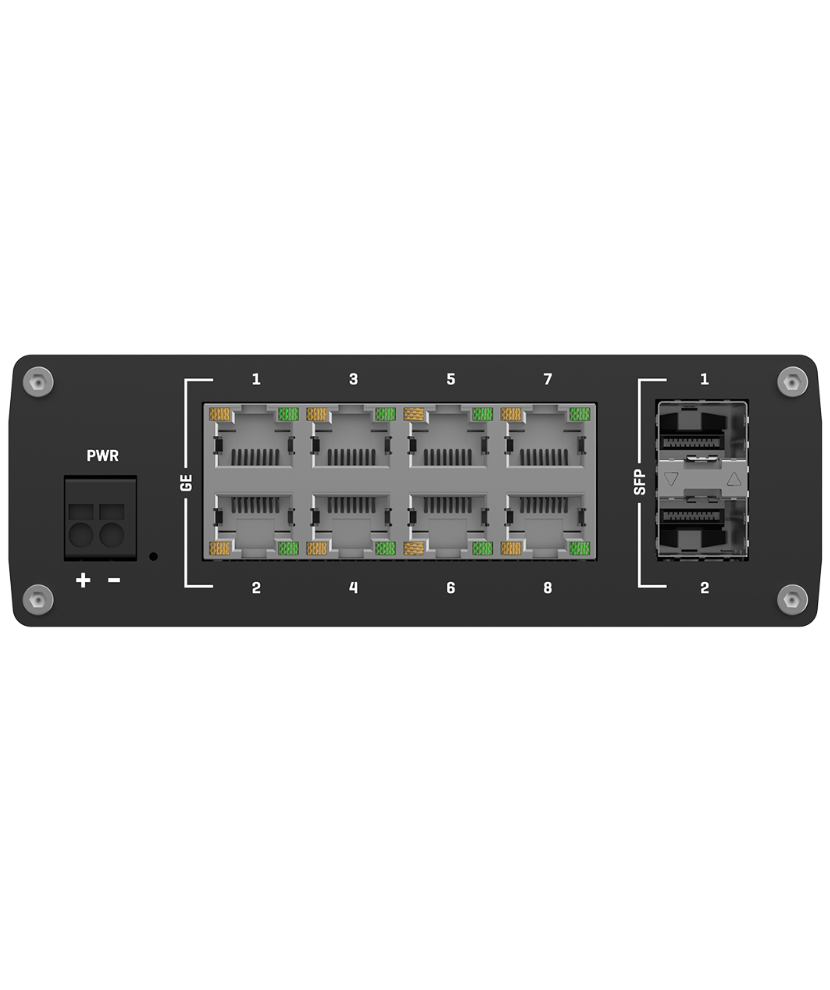

PHYSICAL INTERFACES |
Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
Fibre | 2 x SFP ports |
Status LEDs | 1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs |
Power | 1 x 2-pin industrial DC power socket |

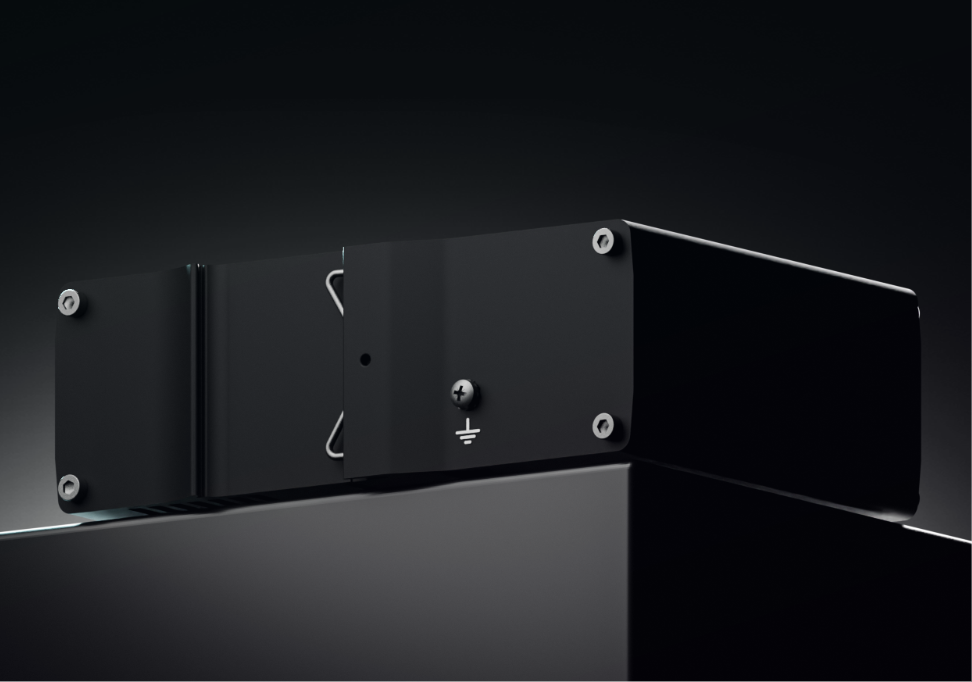

Other | 1 x Grounding screw |
PHYSICAL SPECIFICATION |
Casing material | Full aluminum housing |
Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
Weight | 500 g |
Mounting options | DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
