Description
PNET1GB Features
Overview | |

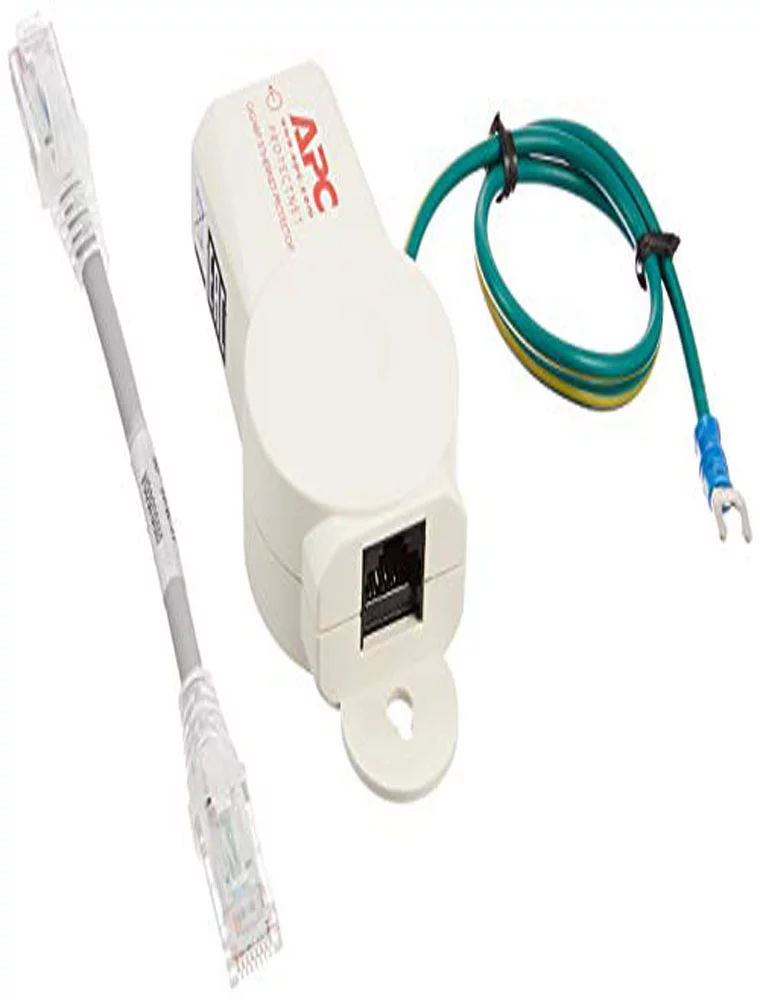

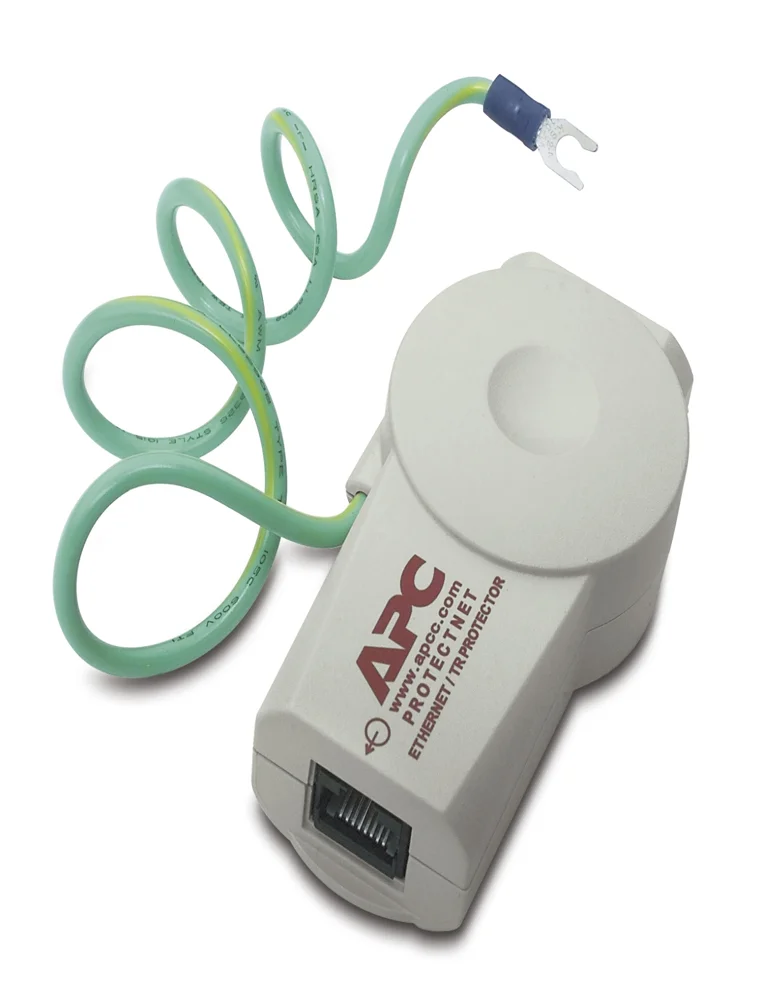

Presentation | Protects an Ethernet data port from damaging surges. Compatible with Power over Ethernet (PoE) and 10/100/1000 Base-T networks. |
Lead time | Usually in Stock |
General | |
provided equipment | Network patch cable (with 15 cm |
User manual | |
Physical | |
colour | Beige |
depth | 2.8 cm |
height | 10.4 cm |
net weight | 0.05 kg |
width | 4.7 cm |
Conformance | |
standards | UL 497B |
Environmental | |
ambient air temperature for operation | -15…65 °C |
relative humidity | 0…95 % |
ambient air temperature for storage | -15…65 °C |
Surge Protection and Filtering | |
data line protected | 8-Jan |
response time | 1 ns common mode |
common mode rejection | 0 dB |
peak current | 0.25 kA common mode |
6.5 kA normal mode | |

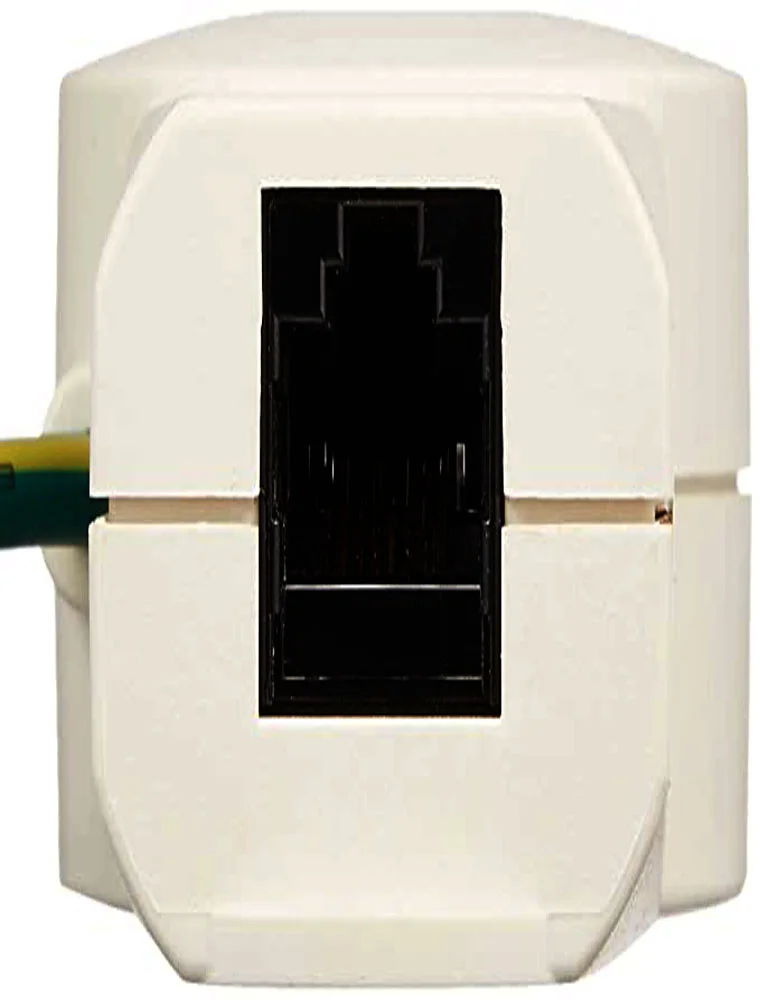

Data line protection | RJ45 10/100/1000 Base-T Ethernet protection |
Packing Units | |
Package 1 Weight | 0.11 kg |
Package 1 Height | 10.4 cm |
Package 1 width | 9 cm |
Package 1 Length | 2.9 cm |
SCC14 | 1.07313E+13 |
Number of Units in Package 2 | 144 |
Package 2 Weight | 20.96 kg |
Package 2 Height | 431.80 mm |
Package 2 width | 584.20 mm |
Package 2 Length | 533.40 mm |
Number of Units in Package 3 | 1152 |
Offer Sustainability | |
EU RoHS Directive | Compliant |
EU RoHS Declaration | |
WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Contractual warranty | |
Warranty | 1 years repair or replace |
